| Quantity: | |
|---|---|
EG
3 inch
Plastic
Feature:

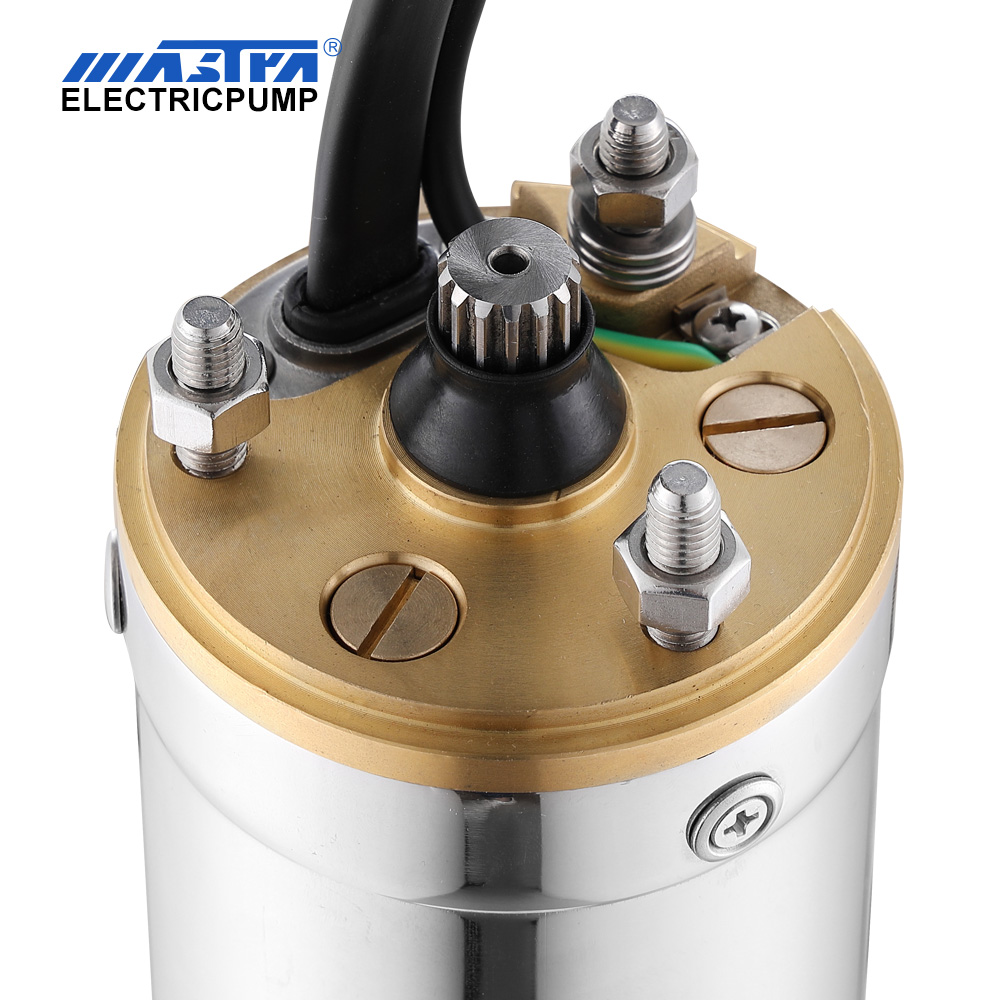

1. Efficient and precise mechanical seals
2. Motor housing and bottom cover adopt stainless steel 304
3. Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
4. High precision silent bearing enables the pumps long service life, more stable operation
5. The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work , long service life, environmental protection and energy saving
6. Starting voltage can be as low as 180V
| Single-phase 220/230V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| H322S025 | 0.25 | 0.33 | 2.2 | 0.86 | 2800 | 358 | 6 |
| H322S037 | 0.37 | 0.5 | 3.1 | 0.91 | 2800 | 378 | 6.3 |
| H322S055 | 0.55 | 0.75 | 4 | 0.91 | 2800 | 398 | 6.7 |
| H322S075 | 0.75 | 1 | 5.4 | 0.95 | 2800 | 438 | 7.7 |
| H322S110 | 1.1 | 1.5 | 8 | 0.99 | 2800 | 478 | 8.4 |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| H338T037 | 0.37 | 0.5 | 1.8 | 0.63 | 2780 | 358 | 6.1 |
| H338T055 | 0.55 | 0.75 | 2.1 | 0.65 | 2780 | 378 | 6.5 |
| H338T075 | 0.75 | 1 | 2.5 | 0.68 | 2780 | 398 | 6.8 |
| H338T110 | 1.1 | 1.5 | 3.5 | 0.7 | 2780 | 438 | 7.8 |
Feature:
1. Efficient and precise mechanical seals
2. Motor housing and bottom cover adopt stainless steel 304
3. Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity
4. High precision silent bearing enables the pumps long service life, more stable operation
5. The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work , long service life, environmental protection and energy saving
6. Starting voltage can be as low as 180V
| Single-phase 220/230V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| H322S025 | 0.25 | 0.33 | 2.2 | 0.86 | 2800 | 358 | 6 |
| H322S037 | 0.37 | 0.5 | 3.1 | 0.91 | 2800 | 378 | 6.3 |
| H322S055 | 0.55 | 0.75 | 4 | 0.91 | 2800 | 398 | 6.7 |
| H322S075 | 0.75 | 1 | 5.4 | 0.95 | 2800 | 438 | 7.7 |
| H322S110 | 1.1 | 1.5 | 8 | 0.99 | 2800 | 478 | 8.4 |
| Three-phase 380/415V 50Hz | |||||||
| Model | kW | HP | Current(A) | CosΦ | rpm | L(mm) | W(Kg) |
| H338T037 | 0.37 | 0.5 | 1.8 | 0.63 | 2780 | 358 | 6.1 |
| H338T055 | 0.55 | 0.75 | 2.1 | 0.65 | 2780 | 378 | 6.5 |
| H338T075 | 0.75 | 1 | 2.5 | 0.68 | 2780 | 398 | 6.8 |
| H338T110 | 1.1 | 1.5 | 3.5 | 0.7 | 2780 | 438 | 7.8 |
