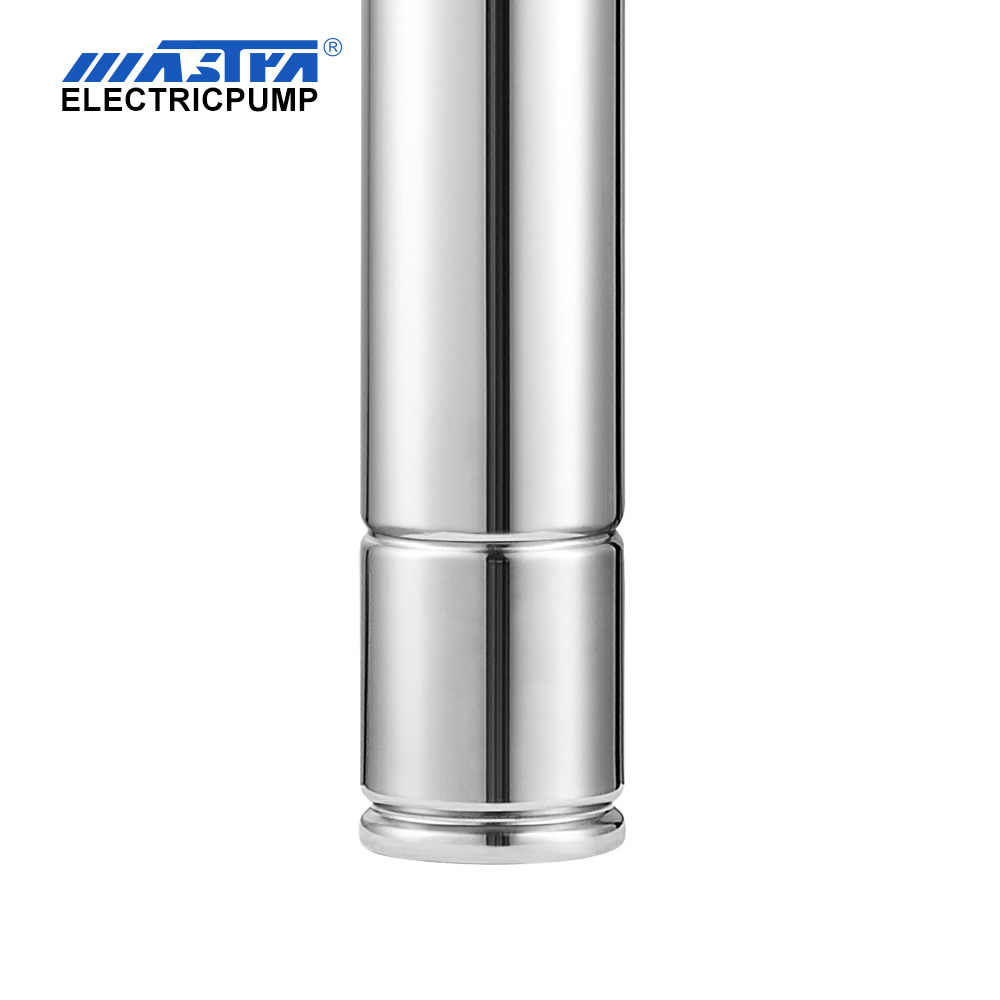

R85-QC
Mastra
3 inch
Plastic
Utilizes the most stage of the art technology from sophisticated countries in the world such as USA and Italy. The main part of pump is made of stainless steel and copper alloy with characters of high efficiency, energy-saving, high wear resistance, anti-rust, beauty appearance and easy installation. Suit for domestic, civil and industrial applications, including for the water supply irrigation, wash down system and pressure boosting.
Feature:
1. POM impeller, wear - resistant, long service life.
2. Multi - stage floating impeller design, effectively reduce the requirements of starting torque, not easily blocked because of small sand particles, (strong ability to cross sand),longer service life of the motor.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 5.3 | 10.6 | 12.3 | 15.8 | 18.5 | 21.1 | 23.8 | |||||||
| m³/h | 0 | 1.2 | 2.4 | 2.8 | 3.6 | 4.2 | 4.8 | 5.4 | |||||||
| 380V | 220V | L/min | 0 | 20 | 40 | 46.7 | 60 | 70 | 80 | 90 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R85-QC-03 | 0.5 | 0.37 | 1.2 | 3.4 | 12 | 450 | H (m) | 26 | 25 | 24 | 23 | 22 | 20 | 17 | 15 |
| R85-QC-04 | 0.5 | 0.37 | 1.2 | 3.4 | 12 | 450 | 35 | 34 | 33 | 31 | 29 | 27 | 23 | 20 | |
| R85-QC-06 | 0.75 | 0.55 | 1.7 | 4.2 | 15 | 450 | 53 | 51 | 49 | 46 | 44 | 41 | 35 | 30 | |
| R85-QC-08 | 1 | 0.75 | 2.1 | 5.4 | 20 | 450 | 70 | 68 | 65 | 61 | 58 | 54 | 47 | 40 | |
| R85-QC-09 | 1.5 | 1.1 | 2.8 | 7.2 | 25 | 450 | 79 | 76.5 | 74 | 69 | 66 | 55 | 54 | 45 | |
| R85-QC-10 | 2 | 1.5 | 2.8 | 7.2 | 25 | 450 | 88 | 85 | 82 | 77 | 73 | 68 | 59 | 50 | |
| R85-QC-12 | 2 | 1.5 | 3.7 | 9.6 | 30 | 450 | 105 | 102 | 98 | 92 | 87 | 82 | 71 | 60 | |
| R85-QC-14 | 2 | 1.5 | 3.7 | 9.6 | 30 | 450 | 123 | 119 | 115 | 108 | 102 | 95 | 83 | 70 | |
| R85-QC-18 | 3 | 2.2 | 5.4 | 13.6 | 40 | 450 | 158 | 153 | 147 | 138 | 131 | 122 | 106 | 90 | |
| R85-QC-19 | 3 | 2.2 | 5.4 | 13.6 | 40 | 450 | 167 | 1161 | 156 | 146 | 138 | 129 | 112 | 95 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R85-QC-03 | 648 | 307 | 340 | G1 1/4" | 85 | 89 | |
| R85-QC-04 | 681 | 307 | 374 | ||||
| R85-QC-06 | 758 | 317 | 441 | ||||
| R85-QC-08 | 845 | 337 | 508 | ||||
| R85-QC-09 | 903 | 362 | 541 | ||||
| R85-QC-10 | 937 | 362 | 575 | ||||
| R85-QC-12 | 1034 | 392 | 642 | ||||
| R85-QC-14 | 1101 | 392 | 709 | ||||
| R85-QC-18 | 1219 | 442 | 776 | ||||
| R85-QC-19 | 1319 | 442 | 877 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
