| Quantity: | |
|---|---|

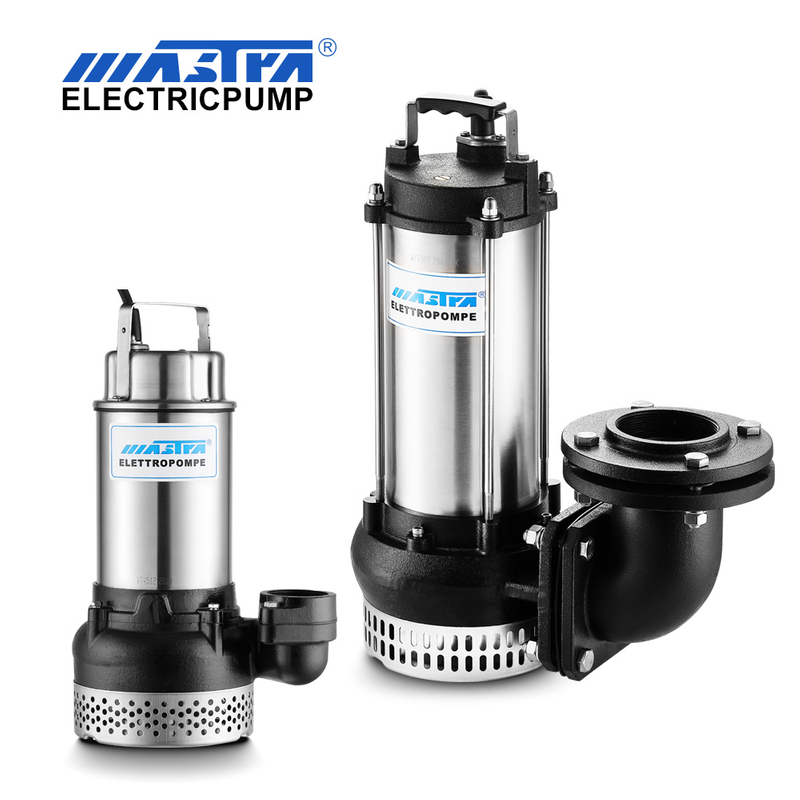

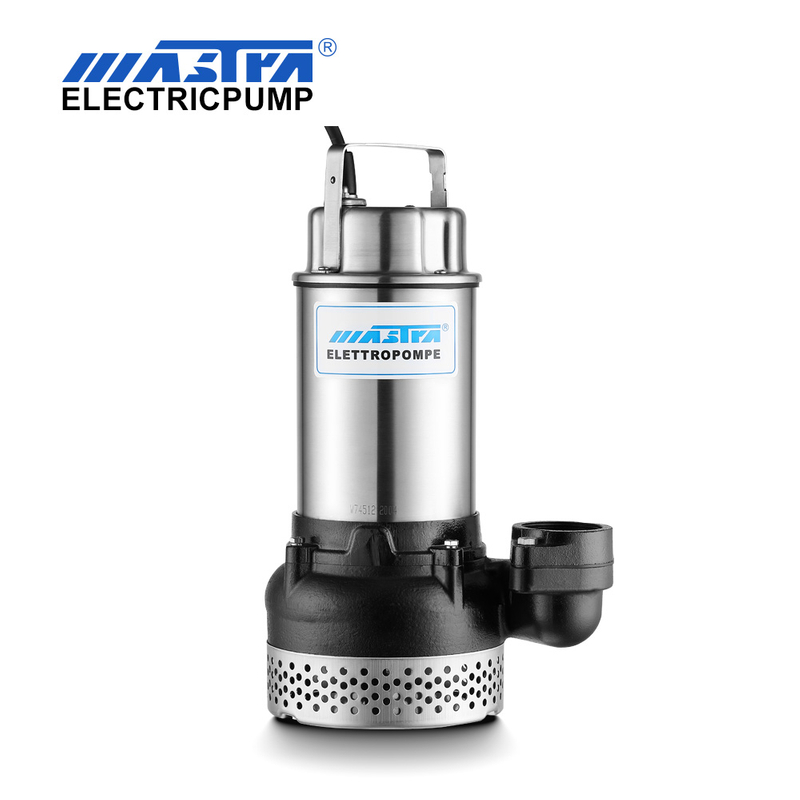

MBA
Mastra
3 inch
Plastic
Feature:

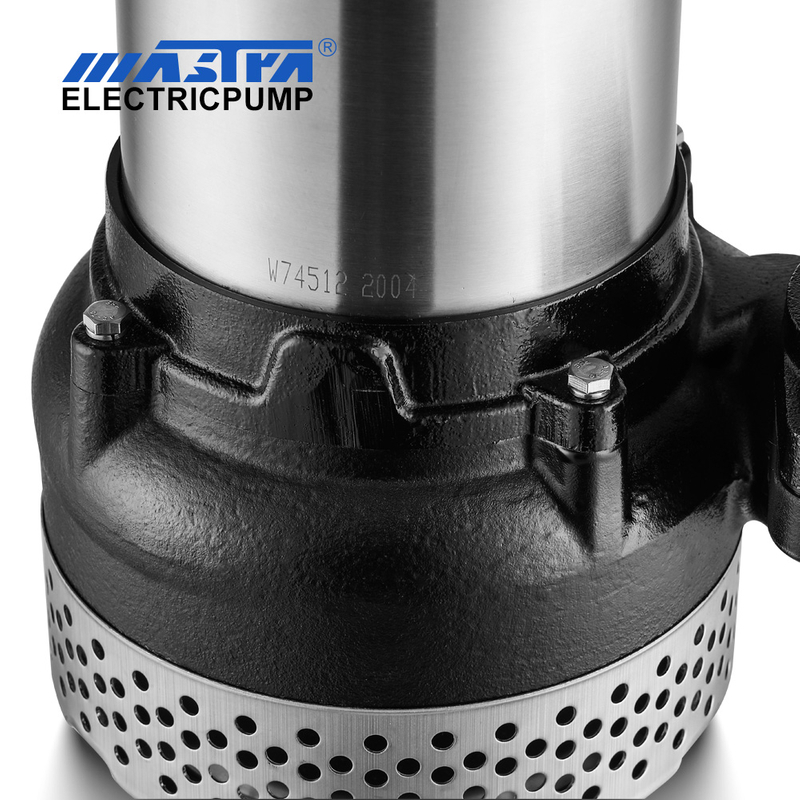

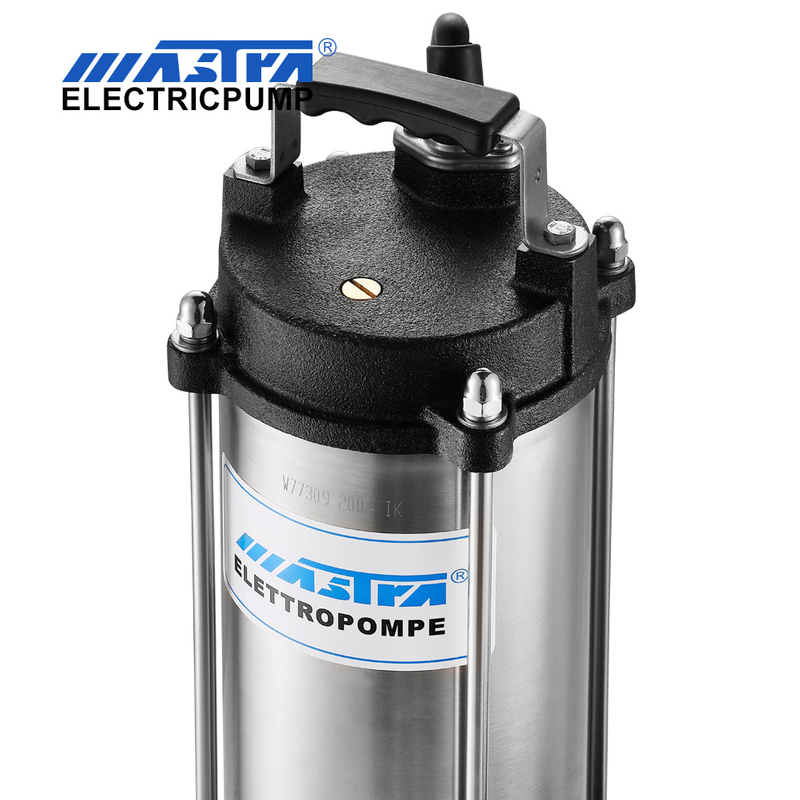

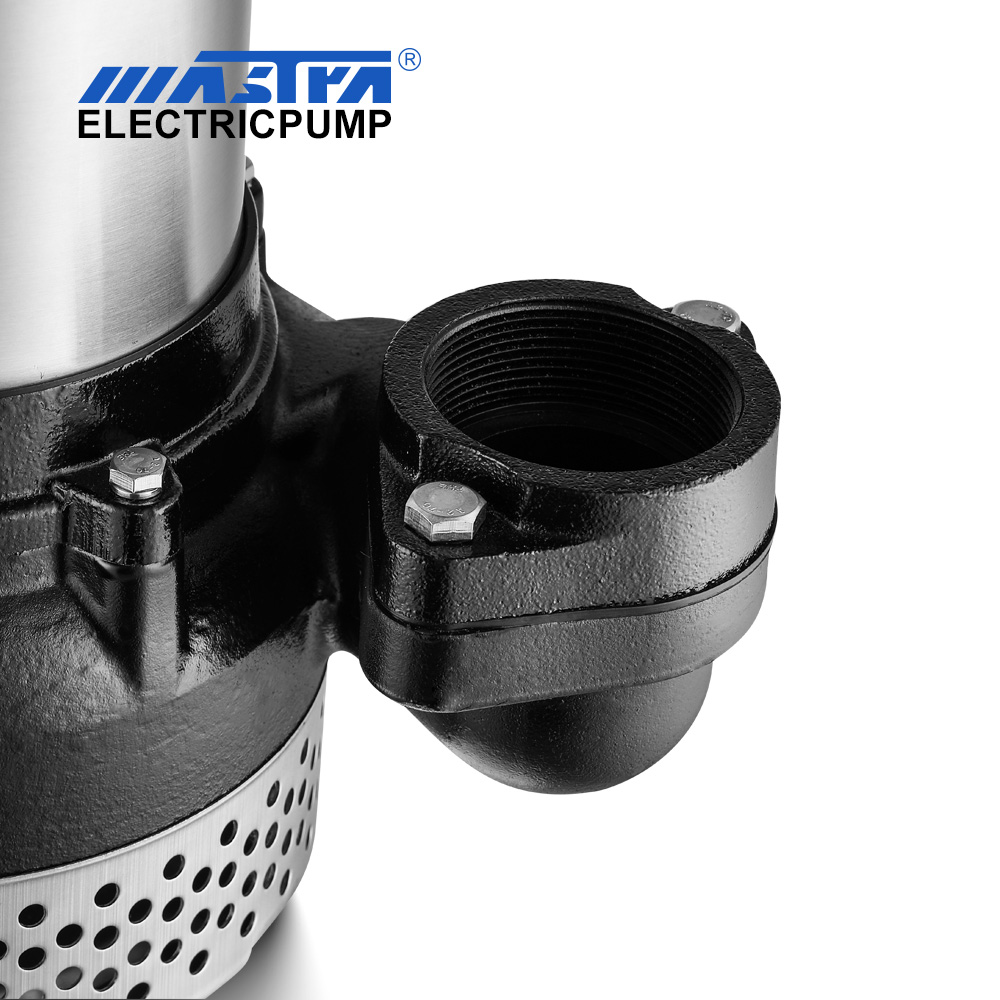

1. AISI304 motor shell, upper cover, strainer, shaft, and nuts
2. Italian double face mechanical seal, AC over-heat protector inside
3. Integrated plug, good water proof
4. Good appearance, small and light, easy to use and maintain
Application:
Draining standing-water and waste water for cellar, plant, construction site etc, Water Circulation for garden landscapes.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MBA202 | 0.25 | 0.4 | 220 | 2P/2850 | 12 | 8 | 50 | 7 | - |
| MBA203 | 0.37 | 0.5 | 220 | 2P/2850 | 15 | 11 | 50 | 6.8 | 13.5 |
| MBA205 | 0.55 | 0.75 | 220 | 2P/2850 | 18 | 12 | 50 | 6.8 | 14.7 |
| MBA207 | 0.75 | 1 | 220/380 | 2P/2850 | 40 | 12 | 50 | 5.5/7 | 20.5 |
| MBA211 | 1.1 | 1.5 | 220/380 | 2P/2850 | 40 | 14 | 50 | 5.5/7 | 21.9 |
| MBA315 | 1.5 | 2 | 220/380 | 2P/2850 | 60 | 14 | 75 | 8 | 26 |
| MBA322 | 2.2 | 3 | 220/380 | 2P/2850 | 66 | 15 | 75 | 8 | 40.2 |
| MBA337 | 3.7 | 5 | 380 | 2P/2850 | 70 | 28 | 75 | 10 | 55.3 |
| MBA355 | 5.5 | 7.5 | 380 | 2P/2850 | 75 | 33 | 75 | 10 | 91.2 |
| MBA475 | 7.5 | 10 | 380 | 2P/2850 | 96 | 35 | 100 | 12 | - |
Feature:
1. AISI304 motor shell, upper cover, strainer, shaft, and nuts
2. Italian double face mechanical seal, AC over-heat protector inside
3. Integrated plug, good water proof
4. Good appearance, small and light, easy to use and maintain
Application:
Draining standing-water and waste water for cellar, plant, construction site etc, Water Circulation for garden landscapes.
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | Weight | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | kg | |
| MBA202 | 0.25 | 0.4 | 220 | 2P/2850 | 12 | 8 | 50 | 7 | - |
| MBA203 | 0.37 | 0.5 | 220 | 2P/2850 | 15 | 11 | 50 | 6.8 | 13.5 |
| MBA205 | 0.55 | 0.75 | 220 | 2P/2850 | 18 | 12 | 50 | 6.8 | 14.7 |
| MBA207 | 0.75 | 1 | 220/380 | 2P/2850 | 40 | 12 | 50 | 5.5/7 | 20.5 |
| MBA211 | 1.1 | 1.5 | 220/380 | 2P/2850 | 40 | 14 | 50 | 5.5/7 | 21.9 |
| MBA315 | 1.5 | 2 | 220/380 | 2P/2850 | 60 | 14 | 75 | 8 | 26 |
| MBA322 | 2.2 | 3 | 220/380 | 2P/2850 | 66 | 15 | 75 | 8 | 40.2 |
| MBA337 | 3.7 | 5 | 380 | 2P/2850 | 70 | 28 | 75 | 10 | 55.3 |
| MBA355 | 5.5 | 7.5 | 380 | 2P/2850 | 75 | 33 | 75 | 10 | 91.2 |
| MBA475 | 7.5 | 10 | 380 | 2P/2850 | 96 | 35 | 100 | 12 | - |
