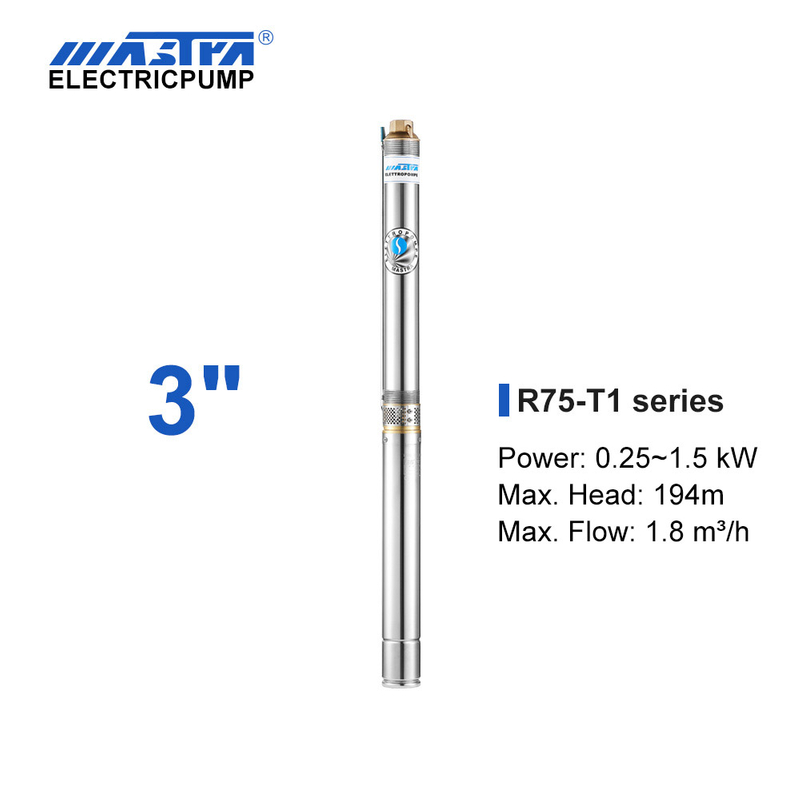

R75-T1
Mastra
3 inch
Plastic
Utilizes the most stage of the art technology from sophisticated countries in the world such as USA and Italy. The main part of pump is made of stainless steel and copper alloy with characters of high efficiency, energy-saving, high wear resistance, anti-rust, beauty appearance and easy installation. Suit for domestic, civil and industrial applications, including for the water supply irrigation, wash down system and pressure boosting.
Feature:
1. Water-lubricated wear-resisting rubber bearing can effectively reduce vibration, wear - resistant and durability.
2. Floating impeller design, effectively reduce the impact of axial force on the impeller, strong ability to cross sand.
Model 50Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 1.3 | 2.6 | 3.5 | 4.4 | 5.3 | 6.6 | 7.9 | |||||||
| m³/h | 0 | 0.3 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | |||||||
| 380V | 220V | L/min | 0 | 5 | 10 | 13 | 17 | 20 | 25 | 30 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R75-T1-10 | 0.33 | 0.25 | - | 2.5 | 10 | 450 | H (m) | 44 | 42 | 40 | 37 | 34 | 29 | 19 | 5 |
| R75-T1-15 | 0.55 | 0.37 | 1.8 | 3.3 | 12 | 450 | 68 | 64 | 62 | 60 | 55 | 49 | 36 | 8 | |
| R75-T1-22 | 0.75 | 0.55 | 2.1 | 4.4 | 15 | 450 | 96 | 93 | 90 | 85 | 77 | 67 | 49 | 11 | |
| R75-T1-30 | 1.1 | 0.75 | 2.5 | 5.7 | 20 | 450 | 134 | 131 | 124 | 116 | 106 | 91 | 62 | 15 | |
| R75-T1-40 | 1.5 | 1.1 | 3.5 | 8 | 30 | 450 | 175 | 170 | 160 | 148 | 133 | 113 | 75 | 20 | |
| R75-T1-44 | 2 | 1.5 | 4.4 | - | - | - | 194 | 190 | 178 | 168 | 152 | 130 | 88 | 22 | |
 | (Unit of Length: mm) | ||||||||
| Model | H1 | Three Phase | Single Phase | ΦA | ΦB | Φmax | |||
| H2 | H3 | H2 | H3 | ||||||
| R75-T1-10 | 408 | - | - | 354 | 762 | G1" | 70 | 75 | |
| R75-T1-15 | 508 | 354 | 862 | 374 | 882 | ||||
| R75-T1-22 | 647 | 374 | 1021 | 394 | 1041 | ||||
| R75-T1-30 | 807 | 394 | 1201 | 434 | 1241 | ||||
| R75-T1-40 | 1006 | 434 | 1440 | 474 | 1480 | ||||
| R75-T1-44 | 1109 | 474 | 1583 | - | - | ||||
| Parts | Material | ||||||||
| Delivery door | Brass | ||||||||
| Suction support | Brass | ||||||||
| Check valve | Plastic(POM) | ||||||||
| Valve support | Plastic(PPO/PC) | ||||||||
| Shaft support | Plastic(PPO/PC) | ||||||||
| Impeller | Plastic(PPO) | ||||||||
| Diffuser | Plastic(POM) | ||||||||
| Valve seal | Nitrile rubber(NBR) | ||||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||||
| Pump body | AISI 304 | ||||||||
| Cable cover | AISI 304 | ||||||||
| Filter | AISI 304 | ||||||||
| Shaft | 2Cr13 | ||||||||
| Shaft coupling | AISI 304 | ||||||||
| Bushing | AISI 304 | ||||||||
