| Quantity: | |
|---|---|
MBF
Mastra
3 inch
Plastic
Feature:

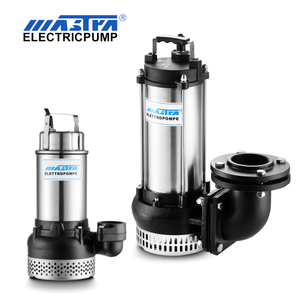

MBF series of sewage submersible pump is the professional submersible equipment specially developed to resolve waste water drainage containing large particles. It adopts imported ltalian double mechanical seal. Cable thrum adopt antifog design make the product excellent waterproof performance. Motor shell, pump shaft and screw are made of 304 stainless steel, with beautiful appearance and durable service.
Application:
1. Used in construction site, engineering foundation construction, public facilities and waterworks
2. rainage sewage from cellar of all sorts of high buildings, bomb shelters, subways, etc
3. Treat sewage and transport circulating water in small and medium size enterprises
4. Pumping liquid with slag for enterprises in the filed of food, paper making, brewing, steel and non-ferrous metal, tanning, textile, pharmacy
5. Pumping slurry in all kinds of breeding industry like chicken farm, pig farm, fish pond, septic-tank, etc
Model 50Hz | Power | Voltage | Rotation | Max Flow | Max Head | Outlet | Max Particle | |
| kW | HP | V | P/rpm | m³/h | m | mm | mm | |
| MBF311 | 1.1 | 1.5 | 380 | 2P/2850 | 46 | 13 | 75 | 50 |
| MBF315 | 1.5 | 2 | 380 | 2P/2850 | 50 | 14 | 75 | 50 |
| MBF322 | 2.2 | 3.7 | 380 | 2P/2850 | 60 | 17 | 75 | 50 |
| MBF437 | 3.7 | 5 | 380 | 2P/2850 | 88 | 19 | 100 | 55 |
| MBF455 | 5.5 | 7.5 | 380 | 2P/2850 | 96 | 22.5 | 100 | 55 |
