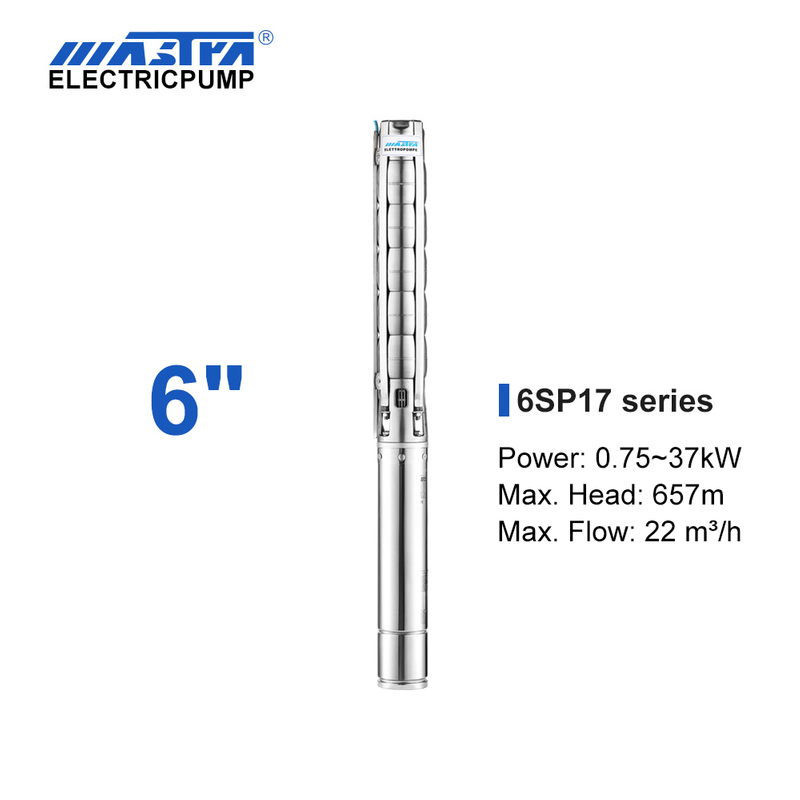

Mastra 6 inch stainless steel submersible pump - 6SP series 17 m³/h rated flow

Name: Mastra 6 inch stainless steel submersible pump - 6SP series 17 m³/h rated flow
Brand: Mastra
Rating: 5.0 (37 reviews)

Availability:

Quantity:



Inquire Add to Basket

Model:
6SP17
Brand:
Mastra
Size:
3 inch
Impeller Material:
Plastic

Product Description

Metal parts for 3SP, 4SP, 5SP, 6SP, 8SP and 10SP series of submersible pump such as impeller, diffuser, pump outlet and suction support etc. are made of wearable and anticorrosive stainless steel AISI304 through advanced moulding and punching craft procedures. Rubber bearing is made of wearable rubber with low friction. The connection method between coupler and motor is in compliance with standard of NEMA. Our impeller and diffuser are designed and manufactured according to the requirements of high efficiency, high reliability and long service life.

Feature:

1. All metal materials are 100% SS304, the structure is corrosion resistant, clean and environmental friendly, and will not cause secondary pollution to the water quality.

2. It is equipped with check valve to prevent the impact of backflow water pressure when the electric pump stops. Drain holes can also be set on the check valve seat according to the customer's needs to slowly drain the water in the pipeline to prevent the pipeline from freezing in winter.

3. All stainless steel impeller has obviously higher wear-resistant and longer service life than the ordinary plastic impeller and brass impeller, so that the pump has high efficiency, good stability and long service life.

4. Stainless steel sand net to prevent sand or large particulate matter into the pump body.

5. Special thrust bearing is installed to effectively prevent the damage in the process of starting the water pump and transportation.

submersible pump for 600 feet borewell pump manufacturer submersible pump service near me

Model 50Hz	Motor Power		Three Phase	Q	Capacity
				US.gpm	0	35	53	70	75	79	88	97
				m³/h	0	8	12	16	17	18	20	22
			380V	L/min	0	133	200	267	283	300	333	367
	HP	kW	A	Total head in meters
6SP17-01	1	0.75	2.5	H (m)	11	10	9	8	8	8	7	6
6SP17-02	1.5	1.1	3.4		22	20	19	17	16	16	14	12
6SP17-03	3	2.2	5.6		33	30	28	25	24	23	21	18
6SP17-04	3	2.2	5.6		44	40	38	34	33	31	28	24
6SP17-05	4	3	7.5		55	50	47	42	41	39	35	31
6SP17-06	5.5	4	9.5		66	60	56	51	49	47	42	37
6SP17-07	5.5	4	9.5		77	70	66	59	57	55	49	43
6SP17-08	7.5	5.5	13		88	80	75	68	65	62	56	49
6SP17-09	7.5	5.5	13		99	90	85	76	73	70	63	55
6SP17-10	7.5	5.5	13		110	100	94	84	81	78	70	61
6SP17-11	10	7.5	17		120	110	103	93	90	66	77	67
6SP17-12	10	7.5	17		131	120	113	101	98	94	84	73
6SP17-13	10	7.5	17		142	131	122	110	106	102	91	80
6SP17-14	12.5	9.2	21		153	141	132	118	114	109	99	86
6SP17-15	12.5	9.2	21		164	151	141	127	122	117	106	92
6SP17-16	12.5	9.2	21		175	161	150	135	130	125	113	98
6SP17-17	12.5	9.2	21		186	171	160	144	138	133	120	104
6SP17-20	15	11	24		219	201	188	169	163	156	141	122
6SP17-21	17.5	13	28		230	211	197	177	171	164	148	128
6SP17-22	17.5	13	28		241	221	207	186	178	172	155	135
6SP17-23	17.5	13	28		252	231	216	194	187	180	162	141
6SP17-24	17.5	13	28		263	241	226	203	195	187	169	147
6SP17-25	20	15	32		274	251	235	211	204	195	176	153
6SP17-26	20	15	32		285	261	244	220	212	203	183	159
6SP17-27	25	18.5	40		296	271	254	228	220	211	190	165
6SP17-28	25	18.5	40		307	281	263	237	228	219	197	171
6SP17-29	25	18.5	40		318	291	273	245	236	226	204	177
6SP17-30	25	18.5	40		329	301	282	253	244	234	211	184
6SP17-31	25	18.5	40		340	311	291	262	252	242	218	190
6SP17-32	25	18.5	40		350	321	301	270	261	250	225	196
6SP17-33	25	18.5	40		361	331	310	279	269	258	232	202
6SP17-34	30	22	46		372	341	320	289	277	265	239	208
6SP17-35	30	22	46		383	351	329	296	285	273	246	214
6SP17-36	30	22	46		394	361	338	304	293	281	253	220
6SP17-37	30	22	46		405	371	348	313	301	289	260	226
6SP17-38	30	22	46		416	381	357	321	309	297	267	232
6SP17-39	30	22	46		427	392	367	329	318	305	274	239
6SP17-40	30	22	46		438	402	376	338	326	312	282	245
6SP17-43	35	26	54		471	432	404	363	350	336	303	263
6SP17-45	35	26	54		493	452	423	380	366	351	317	275
6SP17-48	35	26	54		526	482	451	405	391	375	338	294
6SP17-51	40	30	64		559	512	479	431	415	398	359	312
6SP17-53	40	30	64		580	532	498	448	432	414	373	324
6SP17-55	50	37	74		602	552	517	465	448	429	387	336
6SP17-58	50	37	74		635	582	545	490	472	453	408	355
6SP17-60	50	37	74		657	602	564	507	489	469	422	367

R75-T1_04

(Unit of Length: mm)
Model	H3	H2	H1	ΦA	ΦB	Φmax
6SP17-01	669	367	302	G2 1/2" or G3"	95	145
6SP17-02	734	387	347		95
6SP17-03	846	454	392		144
6SP17-04	891	454	437
6SP17-05	1165	667	498
6SP17-06	1245	702	543
6SP17-07	1290	702	588
6SP17-08	1375	742	633
6SP17-09	1420	742	678
6SP17-10	1465	742	723
6SP17-11	1545	777	768
6SP17-12	1590	777	813
6SP17-13	1635	777	858
6SP17-14	1710	807	903
6SP17-15	1755	807	948
6SP17-16	1800	807	993
6SP17-17	1845	807	1038
6SP17-20	2005	832	1173
6SP17-21	2080	862	1218
6SP17-22	2125	862	1263
6SP17-23	2170	862	1308
6SP17-24	2215	862	1353
6SP17-25	2315	917	1398
6SP17-26	2360	917	1443
6SP17-27	2455	967	1488
6SP17-28	2500	967	1533
6SP17-29	2545	967	1578
6SP17-30	2590	967	1623
6SP17-31	2635	967	1668
6SP17-32	2680	967	1713
6SP17-33	2725	967	1758
6SP17-34	2820	1017	1803
6SP17-35	2865	1017	1848
6SP17-36	2910	1017	1893
6SP17-37	2955	1017	1938
6SP17-38	3000	1017	1983
6SP17-39	3045	1017	2028
6SP17-40	3090	1017	2073
6SP17-43	3270	1062	2208
6SP17-45	3360	1062	2298
6SP17-48	3495	1062	2433
6SP17-51	3685	1117	2568
6SP17-53	3775	1117	2658
6SP17-55	3955	1207	2748
6SP17-58	4090	1207	2883
6SP17-60	4180	1207	2973

Parts		Material
Shaft		AISI 304(316L)
Coupling		AISI 304(316L)
Check value		AISI 304(316L)
Pump body		AISI 304(316L)
Impeller		AISI 304(316L)
Diffuser		AISI 304(316L)
Bearing		Wear resistant rubber
Suction strainer		AISI 304(316L)
Suction support		AISI 304(316L)
Delivery body		AISI 304(316L)
